Rubber calender machines are critical in rubber processing. They play a key role in turning raw rubber into finely calibrated, uniform sheets. These machines use heavy-duty, precise rollers. The rollers press and stretch rubber compounds into specific shapes and thicknesses. This process is vital for making many rubber products. It’s used to make tires and conveyor belts. It’s also used for waterproofing sheets and gaskets. This article aims to discuss the many uses, functions, and benefits of rubber calendar machines. It will provide insights into how they improve the efficiency and quality of making rubber products.
Table of Contents
What is a Rubber Calender Machine?
A rubber calendar machine is crucial in the rubber manufacturing industry. It is designed to compress rubber into thin, even sheets. This machine works by passing the rubber compound through a series of rollers that flatten it into the desired thickness and width. The rubber sheets’ thickness is crucial. It ensures consistent quality in the final products. These products range from industrial rubber mats to layers in car tires.
The rollers define a rubber calender machine. They are the core components. They process the rubber. Typically, calendars come in different configurations depending on the number of rollers, which can vary from two to four. Each roller type serves a specific purpose:
Two-roll calendars are used for simple sheeting processes. They can also make coatings on fabric or other substrates.
Three-roll calenders are more versatile and capable of producing single or double-sided coated products. The rollers can be arranged vertically, inclined, or in an inverted ‘L’ shape. Each design optimizes calendering for different types of rubber compound distribution and thickness control.
Four-roll calendars are common in making tire parts. They help layer rubberized fabrics and steel cords. The configuration of the rolls can be adjusted to ‘Z’ or ‘L’ types to enhance precision in the calendering process .
How Does a Rubber Calender Machine Work?
Operating a rubber calender machine is critical in making rubber products. Precision and control are key. The process begins by feeding a warm, plastic rubber compound into the calender machine. This compound is usually pre-mixed. Sometimes, it is pre-heated to make it malleable for processing.
Feeding the Rubber: The rubber compound is introduced into the gap between the first two rollers. These rollers rotate in opposite directions to pull the rubber into the machine. You can adjust the gap between these rollers. This gap sets the sheet’s starting thickness.
Compressing and Stretching: As the rubber passes through the initial rollers, it is compressed to a rough thickness. Subsequent rollers refine this thickness further. In machines with three or more rollers, the rubber is stretched and flattened. This happens as it moves from one pair of rollers to the next. Each roller pair can be set to a specific gap. This allows precise control over the final thickness and texture of the rubber sheet.
Temperature and Pressure Adjustments:
The final rubber sheet’s quality is much influenced by the calender machine’s temperature and pressure settings. The rollers are often heated or cooled to maintain a specific temperature that is ideal for the type of rubber being processed. Higher temperatures soften the rubber and make it easier to stretch. Cooler temperatures set the rubber as it exits the machine. Pressure adjustments are crucial. Higher pressure from the rollers makes thinner sheets. Lower pressure allows for thicker sheets. These parameters are controlled precisely. This control ensures the rubber sheets have the same thickness and the best texture for their specific uses.
Final Adjustments and Quality Control: The last set of rollers often performs final touches, ensuring the surface of the rubber is smooth and free of defects. Continuous monitoring of roller pressure and temperature is essential. It maintains the quality standards for the end product.
Types of Rubber Calender Machines
Rubber calendar machines are special. They are used in the rubber industry to make thin, even sheets of rubber. These machines come in many types. Each is designed to meet specific production needs. These needs relate to the thickness, texture, and layering of rubber. Below is an overview of the different types of rubber calendar machines and their specific uses:
Two-Roll Calenders
Use: Primarily used for simple sheeting of rubber and coating processes. This type is ideal for making smooth, even sheets of rubber. It’s also commonly used for attaching rubber to fabrics or other materials.

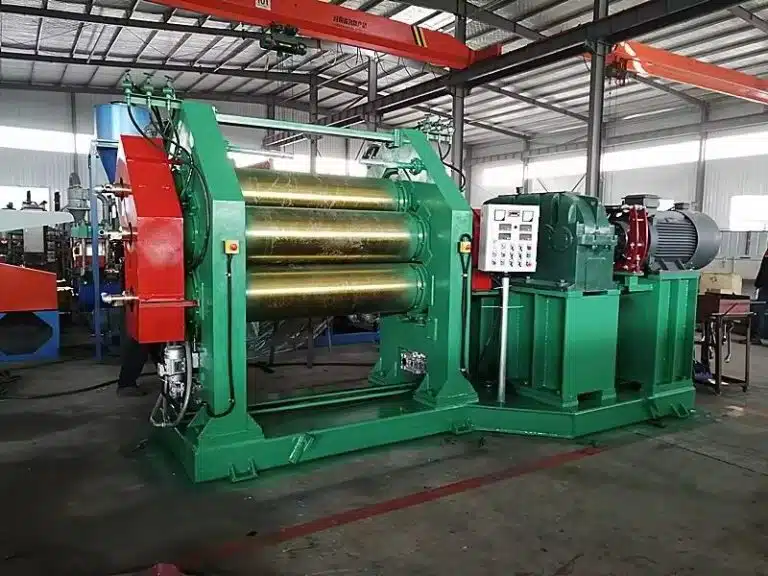

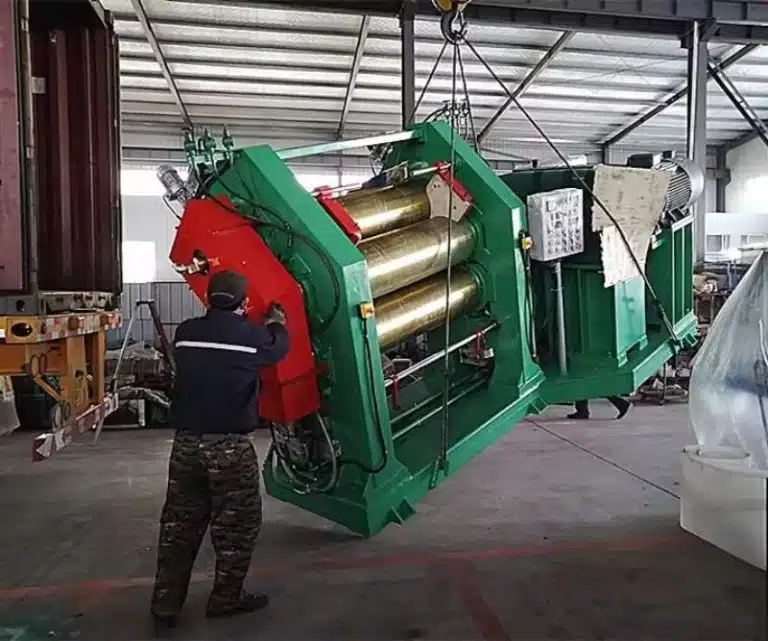

Three-Roll Calenders
Use: Three-roll calendars are more versatile than the two-roll type. They can produce single or double-sided coated products. They are good for complex applications. These need precise control over the thickness and surface of rubber sheets.
Special Configurations:
Vertical Three-Roll Calender: The rollers are vertical. This improves control over the thickness across the sheet’s width.
Inclined or Tilted Three-Roll Calendar:
It has a gravity-assisted feeding mechanism. This can help with some rubber compounds.
Four-Roll Calenders
Use: Often used for the production of tire components, such as treads and sidewalls. Four-roll calenders allow the layering of rubberized fabrics and steel cords. This layering is essential for making high-strength rubber products.
Special Configurations:
Inverted ‘L’ Type Calender: This setup helps in specific applications. In these cases, the rubber needs to be applied in layers or with a particular orientation .
‘Z’ Type Calender: It offers more precise control of thickness. This is useful for products with meticulous specifications.
Industries Utilizing Rubber Calender Machines
Rubber calender machines are specialized devices. They are vital to the rubber processing industry. They are designed to squash rubber into thin, even sheets. Various industries use these machines. They can precisely control the thickness and texture of rubber products. In the car industry, they are crucial for making tires, seals, and gaskets. They ensure components meet safety and durability standards. The electronics industry relies on them. They make gaskets and insulators that protect sensitive components. In construction, they use calendered rubber for roofing membranes and waterproof seals. These are critical for a building’s integrity and resistance to the environment. Manufacturers use these machines to make durable conveyor belts and industrial rollers. The medical field depends on them to make hygienic and precise items, like medical gloves and tubing. Each type of calendar machine has two-roll to four-roll configurations. They are chosen based on specific product needs. Machines play a vital role in maintaining efficiency and quality in diverse manufacturing processes.
Comparative Advantages Over Other Rubber Processing Methods
Rubber calendering, extrusion, and molding are all popular methods in the rubber processing industry. Each has its advantages and applications. However, rubber calendering has specific benefits. It is more precise and efficient. These traits make it preferable for some applications.
Precision in Thickness and Texture： Calendering is great at making rubber sheets. They have a very consistent thickness and smooth surface textures. This accuracy is crucial in applications where sameness directly affects product performance and quality. This includes making rubber sheets for gaskets or layers in high-quality tires. Calendering has more refined control over thickness. This is compared to extrusion, where variability can be higher due to the process’s nature. Molding is precise. But, it’s mainly for 3D objects. It can’t make the thin, flat shapes that calendering can.
Efficiency and Scalability： In terms of efficiency, calendering can process lots of rubber fast. It is ideal for high-scale production. Calendar machines run continuously. They allow for steady production without the stops and starts of molding. Extrusion is also efficient and continuous. However, calendering usually has more uniform material and faster setup for changes in thickness or material.
Cost-Effectiveness： Calendering can be cheaper than molding. It’s better for making flat products. This is due to less material waste and faster production. Molding processes often use more material and can have more scrap. This scrap may not be easily recycled back into the process. Extrusion can be cost-effective. However, it may need extra steps to achieve the same precision in material thickness and surface quality as calendering.
Maintenance and Operational Tips
Maintaining a rubber calendar machine is key. It ensures its durability and steady performance over time. Here are some practical maintenance and operational tips to help keep your calendar machine in top condition:
Regular Lubrication: The rollers and bearings in a calender machine need regular lubrication. This lubrication reduces friction, prevents wear, and keeps the machine running smoothly. Use the lubricant recommended by the manufacturer. Stick to the suggested schedule for lubrication.
Routine Inspections: Conduct routine inspections of all mechanical parts, including rollers, gears, and bearings. Check for signs of wear or damage such as cracks, corrosion, or misalignment. Early detection of potential issues can prevent costly repairs and downtime.
Cleaning Protocols: Keep the machine clean from rubber dust and particles that can accumulate during the calendering process. Regular cleaning helps in maintaining the quality of the rubber sheets and extends the life of the rollers.
Temperature Monitoring: Temperature control is critical in calendering. Regularly check and calibrate the machine’s temperature settings. Ensure that the rollers are heated evenly to avoid any quality issues with the rubber sheets.
Pressure Adjustments: Check and adjust the pressure settings often. This ensures the rubber sheets stay the right thickness and quality. Inconsistent pressure can lead to defects in the final products.
Training for Operators: Ensure that all machine operators are properly trained in both the operation and the maintenance of the calendar machine. Operators with knowledge can better spot early problems. They can make correct fixes.
Scheduled Downtime for Servicing: Plan for regular downtime. Use it to do thorough maintenance and servicing of the machine. This includes checking the hydraulic systems, and electrical components, and replacing any worn-out parts.
Documentation and Records: Keep detailed records of all maintenance activities, repairs, and replacements. This documentation can help in troubleshooting future issues and planning preventive maintenance schedules.
Conclusion
Rubber calendar machines are vital to the success of industries. They require high-precision rubber products. Crowns Machinery is a top maker in this field. They offer a range of calendar machines. These include 2-roll, 3-roll, and 4-roll models. They meet diverse manufacturing needs. Each machine type is designed for high precision and efficiency. They ensure that clients get the best rubber sheets, belts, gaskets, and tires for their needs. Contact Crowns Machinery today to discuss integrating our cutting-edge calendar machines into your line. We will boost productivity and deliver great results.
FAQ
Rubber calender machines produce various products like rubber sheets, belts, gaskets, and tires. Each product benefits from the precise thickness and evenness that calendering provides. This is crucial for many industries, from cars to industrial machinery.
Rubber calendar machines focus on making flat, thin sheets. They have consistent thickness and smooth finishes, which are ideal for sheeting and layered composites. Extruders are different. They are for shaping rubber into continuous shapes. These shapes include tubes and profiles. These shapes are useful for making complex geometries.
