How Does Rubber Calender Machine Work?

A rubber calender is a kind of mechanical equipment specialized in the rubber processing industry and processing rubber materials, which can calender rubber materials into thin sheets of different thicknesses to ensure that the products have uniform thickness and texture, to improve the quality and performance of the products. Main performance:

The rubber calender keeps the rubber sheet thick and consistent. It does this by making precise adjustments to pressure and speed during processing. This even thickness is the basis for good rubber products. It avoids the effects of uneven thickness on product performance.

Controlling the calendar’s process parameters — like temperature, pressure, and speed — is key to consistent rubber products. Crowns Machinery’s rubber calenders have an advanced control system. It accurately controls parameters. This ensures the rubber product meets the desired properties and texture. Next, we’ll take a closer look at the application and importance of rubber calenders in rubber processing.

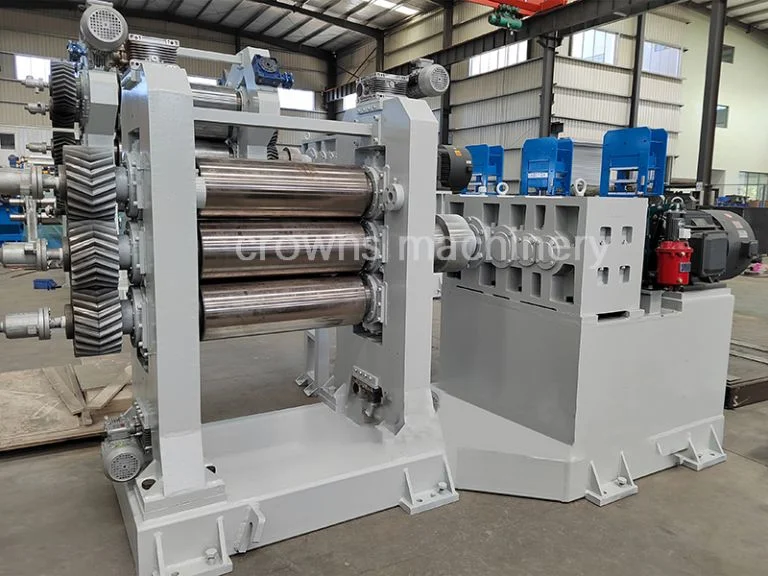

How Does Rubber Calender Machine Work-Crowns Machinery

Table of Contents

 What is a rubber calender?

A rubber calender is the main type of machinery used to process rubber. Its main job is to calender the rubber into a sheet of the desired thickness. It does this through a series of pressure and temperature controls. This type of machine usually has one or more pairs of rollers. The rollers rotate and adjust pressure. They do this to press the rubber material into a product with a consistent thickness.

Rubber calendering machines are vital in rubber processing. They ensure that rubber products have a consistent thickness and texture. This improves product quality and performance. It also helps to achieve precise control. This control is over the shape and size of the rubber product. It is to meet the needs of different uses.

Free consultation & customized rubber equipment solutions
Our team of experts is ready to provide you with professional consultations and customized rubber equipment solutions. Get in touch today to discover how to improve your productivity and product quality.

 Components of rubber calender

The main components of a rubber calender include the rollers, the frame, and the drive mechanism. The rollers are the core of the machine. They usually consist of one or more pairs of rollers. The rollers calender the rubber into a sheet of the desired thickness. These rollers are usually made of wear-resistant materials. Examples include steel or carbide. They ensure stability and durability under high pressure and heat.

The frame is the support structure of a rubber calender and is used to support and hold the rollers and other components. The frame is usually made of steel or cast iron. It needs to be stable and rigid. This will ensure that the machine does not deform or vibrate oddly when it runs.

The drive mechanism is responsible for driving the rotational movement of the rollers and is usually composed of an electric motor and a hydraulic device. The drive gives the machine enough power for different conditions. It ensures that the rubber is calendered and processed evenly.

These parts work together. They enable rubber calenders to process rubber well. They do so efficiently and accurately.

Crowns Machinery's Rubber Calenders for Sale

Calendering Process

Rubber calendering is a step-by-step process. It turns rubber from a raw material to a finished product.

Preparation of raw materials: They are usually solid blocks or granules. They can include natural rubber, synthetic rubber, or recycled rubber.

Feed stage: The raw material is fed into the feed end of the calender. At this stage, the raw material may need pre-treatment. This may include heating or mixing. It makes the raw material easier to calender and process.

Calendering process: The raw material is sent to the calendering area between the rollers. There, the rollers are set to the needed distance and pressure. Then, they turn to press, stretch, and change the raw material until it reaches the right size and thickness.

Discharge stage: the calendered rubber material is released from the discharge end. The rubber may still be in a hot state and require cooling or further treatment in a subsequent process.

Types of rubber calenders

Rubber calenders have different types. They include two-roll, three-roll, and four-roll machines.

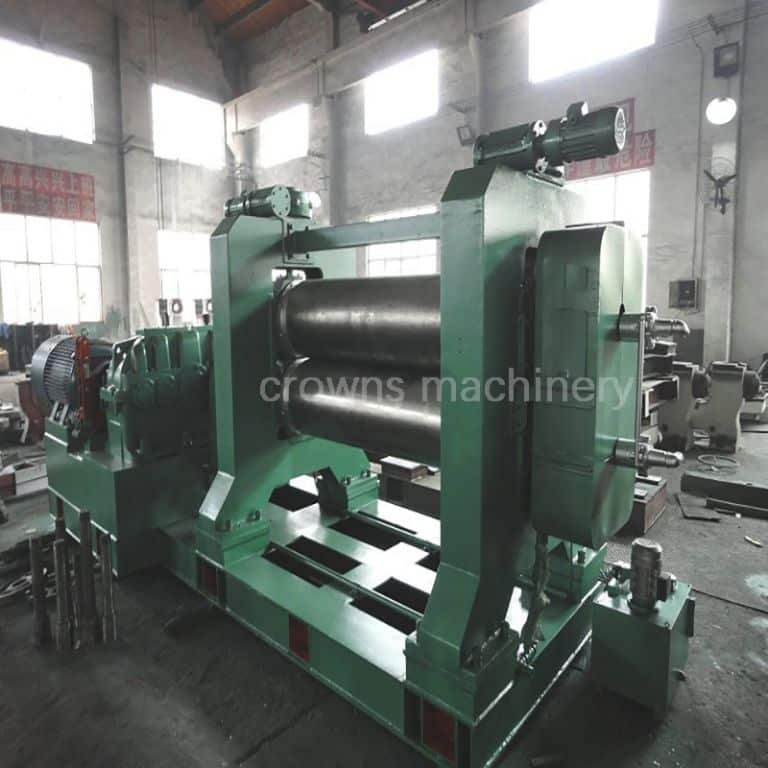

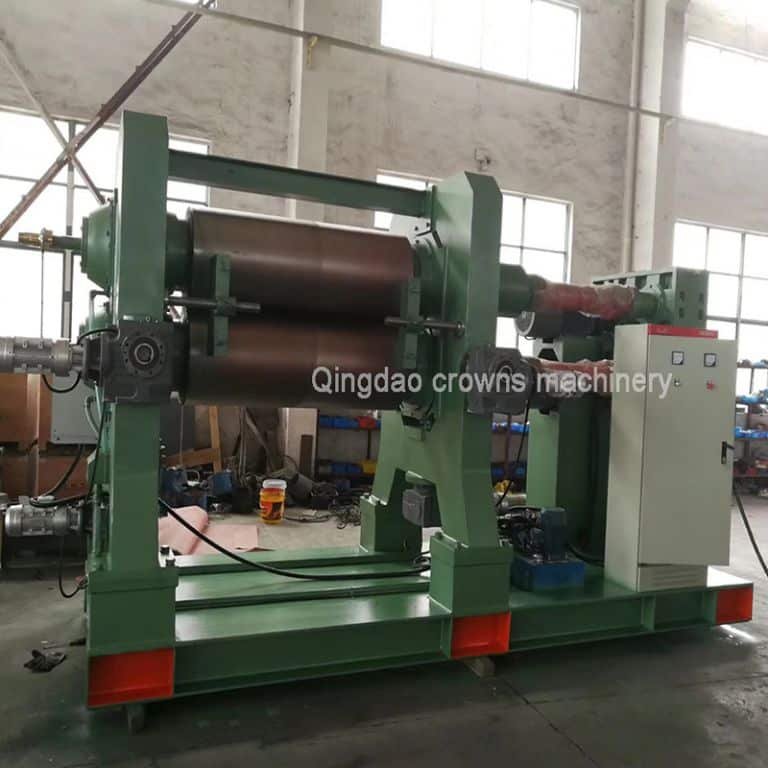

Two Roll Calenders: Two roll calenders consist of two rolls, one of which is the driving roll and the other is the driven roll. They work for calendering thin rubber materials. These include rubber sheets and rubber films. Their advantages include simple structure, easy operation, and low cost. However, they are not strong enough for calendering thicker or harder rubber.

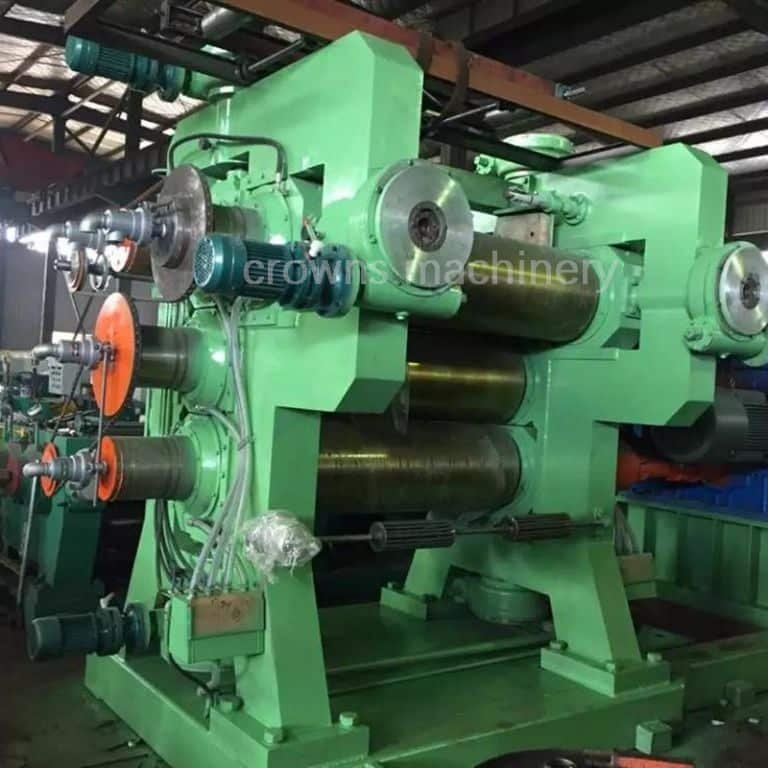

Three Roll Calenders: Three roll calenders consist of three rollers, two at the top and one at the bottom. They are for large-scale production. They are good for calendering thicker rubber, like sheets and tubes. The advantage is that the calendering force is high. The capacity is high too. This allows the production of thicker rubber products. However, it requires more space and a more complex structure.

Four-roll calender: A four-roll calender consists of two pairs of rollers, usually two large rollers and two small rollers. The large rolls are used to press the rubber material and the small rolls are used to adjust the gap between the rolls. The four-roll calender is complex. But, it gives higher forces and better control.

Crowns Machinery meets many types of rubber calender options

Applications of Rubber Calenders

Rubber calenders play an important role in a variety of applications, mainly in the manufacturing of tires, sheets, and hoses.

Tire Manufacturing: Rubber calenders play a vital role in tire manufacturing as the tread, sidewall, and sole of the tire need to be processed by the calender. With calenders, rubber is pressed into treads and sidewalls. They have consistent thickness and texture. This ensures tire performance and safety. Specific calendering techniques ensure the tread pattern and tire structure meet set performance requirements.

Hose Manufacturing: Rubber hoses such as water hoses, oil hoses, and air hoses are widely used to transport substances such as liquids and gases. In making hoses, the rubber must be processed by a calendering machine. It is turned into tubular products with a set thickness and strength. This makes the hose’s inner and outer walls flat and even. It also improves the hose’s resistance to wear and pressure.

Rubber Sheet Manufacturing: Rubber calenders can make rubber sheets with even thickness and texture. Rubber sheets are widely used in industries like automotive, construction, and manufacturing. They use the sheets to make seals, gaskets, fenders, and more.

Common Problems Troubleshooting

The rubber calender may face daily problems. They need troubleshooting and maintenance.

Roller wear: Check the wear of the roller surface often. Adjust the roller position in time and replace worn rollers. Do this to keep the thickness consistent in calendering.

Inaccurate temperature control: Temperature changes will affect the fluidity of the rubber. This will affect rubber processing. So, it’s very important to regularly inspect and calibrate the temperature control system. This is to ensure the stability and accuracy of the temperature in calendering.

Uneven material flow: Uneven material flow causes problems. These include inconsistent thickness and bubbles in the rubber. This leads to defects in the products. The uniform flow of rubber material during calendering can be ensured by adjusting the feeding system and roller gap.

Mechanical Component Failure: Mechanical failures may affect the calender. They cause interruptions and quality problems. Conduct regular inspection and maintenance of mechanical parts and repair or replace damaged parts on time.

Crowns Machinery Rubber Calendering Equipment for Multiple Applications

Conclusion

Many factors affect the quality of calendered rubber products. These include roller condition, temperature control, pressure control, and material uniformity. The wear and flatness of the rollers affect rubber quality. Temperature affects rubber fluidity and hardness. Calender pressure affects rubber thickness and density. Uneven material flow causes an uneven surface or bubbles.

To keep the calender safe and efficient, the company should organize regular training. It should cover operation and maintenance. Operators should learn the latest technology and specs. They should review what they have learned through hands-on practice. This will help them handle different production situations. Systematic training will help employees master calendar operation and maintenance. It will also improve production efficiency and product quality. This will help ensure the company keeps its leading position in the highly competitive market. If you have any questions about rubber calendering, please feel free to contact Crowns Machinery engineers for the best solution!

FAQ

Quality of raw materials: The rubber materials’ composition and quality directly affect the nature and quality of the final products.

Calender parameters: It affects the control of rubber processing. It also affects product quality. It includes pressure, temperature, speed, and other factors.

Machine status: The calender’s maintenance status and properties affect its processing stability and product quality. This includes its mechanical properties.

Process control: including calender debugging, operation flow, material feeding mode, and other process parameters control.

Operation skills: Operator skills and experience are important. They have a big impact on rubber processing and product quality.

Regular maintenance: Keep all parts of the calender working. Regularly check and replace worn parts. This stops downtime from equipment failure.

Lubrication management: Keep the machine’s moving parts well-lubricated. This reduces friction loss and improves the equipment’s efficiency.

Adjustment of process parameters: You should optimize calendering speed, pressure, and temperature. Do so to fit different rubber formulas and product requirements. This will ensure the best production conditions.

Material pre-treatment: Treating raw materials before can help. For example, by mixing them well and heating them. This improves their processability in calendering.

Skill training: Train operators regularly. Make sure they know the equipment’s procedures and emergency treatment. This will cut the efficiency loss from improper operation

Safety training: Strengthen safety awareness and operation norms. This will avoid accidents and downtime from improper operation.

Wear protective equipment: This includes a safety helmet, safety glasses, earplugs, and gloves. They prevent injuries from accidents.

Familiarize yourself with the operation of the equipment: Check the parts of the calendar often. Do this before and during use. This will ensure the machine is in good condition.

Prohibit operation by unauthorized personnel: Only trained and authorized personnel are authorized to operate the calender.

Timely cleaning of the working area: Clean the sundries and residues in the working area. Also, clean around the machine. This will keep a tidy working environment and avoid accidents.

Emergency stop: Ensure the calender has an emergency stop. It lets the machine be stopped quickly in an accident.
