Banbury Mixer Vs Kneader Machine

The Banbury Mixer and the Kneader Mixer are two machines widely used to process high viscosity materials. They have important applications in the rubber, plastics, and adhesives industries. At the heart of both machines is efficient mixing and molding, which is critical to the homogeneity and rheology of high-viscosity materials in the production process, as well as to the quality of the final product. In the next section, Crown Machinery will provide a detailed comparison of the Banbury mixer Vs kneader mixer concept.

Banbury Mixer Vs Kneader Machine

Table of Contents

Banbury Mixer

The Banbury Mixer is an internal mixer. It uses two high-speed rotating blades or vanes to mix materials in a closed container. The equipment is capable of uniformly mixing high-viscosity materials through high shear and pressure. This equipment is ideal for handling rubber, plastics, and high-viscosity adhesives, among other things. The following features characterize it.

Highly efficient mixing: uniform mixing of materials can be accomplished in a relatively short period.

High viscosity adaptability: It is especially suitable for high-viscosity rubber, plastic, adhesive, and other materials. It can provide enough shear force and heat to ensure uniform distribution of materials.

Improvement of rheology: Improve the rheological properties of the material through mixing, providing good material properties for subsequent processing (e.g. extrusion, molding, etc.).

Main applications



Rubber industry: It is used for mixing large quantities of rubber formulations, especially those containing multiple fillers, plasticizers, and vulcanizing agents. It ensures that these materials are evenly distributed, enhancing the physical properties and processing characteristics of the rubber.

Plastics industry: It is used for mixing different types of additives, such as stabilizers and plasticizers, during the plastic modification process to ensure uniform distribution of materials.

Processing of high-viscosity, high-strength materials: Banbury Mixer can effectively deal with high-viscosity materials that require high-strength shear, especially for rubber, plastics, composites, and so on.

Adhesives: Used for mixing adhesives to ensure uniform distribution of different components in the material and improve the adhesion and stability of the final product.

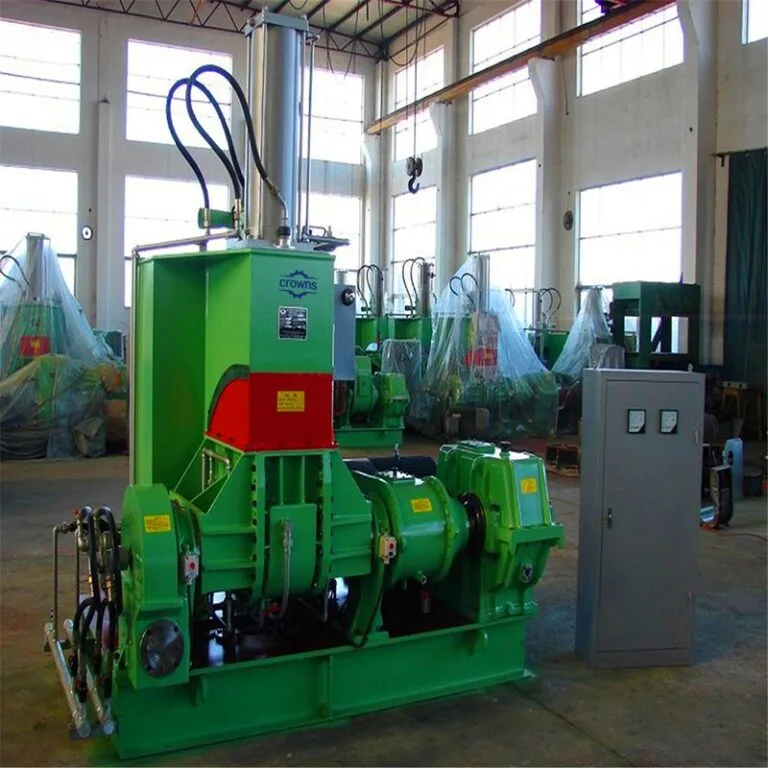

Kneader Mixer

Kneader Mixers are usually equipped with two or more propeller agitators. These agitators can be rotated in different directions to generate strong shear forces. It is ideally suited for mixing, plasticizing, and blending highly viscous materials. It has the following characteristics:

High Viscosity Handling: Compared to the Banbury Mixer, the Kneader Mixer has a unique mixing structure and stronger thrust to handle higher-viscosity materials.

Homogeneity: The machine is particularly good at handling highly viscous composites and ensures that all components are evenly dispersed. In addition, excessive material build-up is avoided.

Flexibility: Suitable for a wide range of industrial applications such as rubber, plastics, and adhesives. Provides good performance especially when it is necessary to mix solids and liquids or materials with different particle sizes.

Main applications



Adhesives: The Kneader Mixer gently mixes a wide range of ingredients in the adhesive production process. Common ones are resins, solvents, thickeners, etc. It avoids damaging the adhesive components by excessive shear and ensures the rheology and adhesion of the product.

Silicone and special rubber: for those high-viscosity materials that are sensitive to shear. For example, silicone, polyurethane rubber, and some special rubber products. The kneader avoids excessive shear and maintains the integrity and properties of the material.

Fine Mixing of High-Viscosity Materials: The Kneader Mixer is suitable for high-viscosity materials that require fine mixing, especially where gentle operation is required to minimize air mixing.

Food and pharmaceutical industry: Suitable for food ingredients, pharmaceutical preparations, etc., the Kneader Mixer ensures gentle mixing while avoiding the destruction of certain ingredients by high temperatures and high shear.

Wide range of applications in the rubber, plastics and adhesives industries

Rubber industry: Banbury Mixer and Kneader Mixer both play a vital role in the mixing, plasticizing and vulcanizing of rubber formulations. They ensure that fillers, plasticizers, vulcanizing agents, etc. are evenly dispersed in the rubber, ensuring consistent product properties. This characteristic is especially important in the production of tires, seals, hoses and other rubber products.

Plastics industry: In plastics processing, especially for plastic modification and mixing of composite materials. These mixing equipment can efficiently mix various additives (e.g. stabilizers, antioxidants, toughening agents, etc.) with the base plastic adequately. This effectively improves the processability of the plastic and the physical properties of the final product.

Adhesive industry: For the production of adhesives, the Banbury Mixer and Kneader Mixer ensure that the different components (e.g. resins, solvents, thickeners, etc.) are mixed homogeneously in a high-viscosity environment. In addition, the rheological properties of the adhesive can be optimized to provide good adhesion and process stability for a wide range of industrial applications.

Banbury Mixers and Kneader Mixers are irreplaceable in the processing of high-viscosity materials. They are especially critical in applications in the rubber, plastics, and adhesives industries. They provide efficient, precise and controlled mixing solutions that enhance productivity and product quality.

Key Comparisons

Comparison DimensionBanbury Mixer (Internal Mixer)Kneader Mixer
Mixing MethodHigh-speed shearing and compressionGentle folding and kneading
Suitable MaterialsHigh-viscosity, high-strength materials (rubber, plastics)High-viscosity but shear-sensitive materials (adhesives, silicones)
Processing CapacityLarge-scale production, suitable for industrial environmentsSmall-batch production, suitable for industries with high mixing control requirements
Energy ConsumptionHigh energy consumption, suitable for high-output demandsLow energy consumption, suitable for energy-efficient production
Mixing TimeFast mixing, about 3-5 minutes per batchLonger mixing time, about 7-9 minutes per batch
Application ScenariosTires, industrial rubber products, plastic processingAdhesives, special rubbers, food and medical industries
Structural FeaturesClosed structure, rotors with drilled design, excellent cooling performanceOpen design, rotors with jacket structure, weaker cooling performance
CostHigh equipment cost, suitable for high-output enterprisesLower cost, suitable for small-scale production with limited budgets
Environmental PerformanceMore environmentally friendly, less exhaust emission, optimized energy consumptionSlightly lower environmental performance, but lower energy consumption

Key Considerations for Choosing Equipment

Do you have the question: Should I choose the Banbury Mixer or the Kneader Mixer? Generally speaking, the choice between a Banbury Mixer and a Kneader Mixer depends on your specific application needs.

If you have high demands on mixing uniformity, strength and productivity. For example, in the tire manufacturing or plastics industry, the Banbury Mixer will suit your needs.

If you need to make small batches that are shear-sensitive and require precise control. For example, medical devices, and adhesive manufacturing, then the Kneader Mixer is perfect for your needs.

In addition, we have compiled several decision criteria to help you make better decisions.

Material Characteristics



Viscosity: The Banbury Mixer is better suited for high-viscosity materials. The Kneader Mixer is suitable for higher-viscosity materials that are sensitive to shear.

Sensitivity: If the material is very sensitive to shear or temperature, such as some adhesives, silicones and specialty rubbers. Then the Kneader Mixer is the better choice.

Production requirements



Throughput: If production needs are high and efficiency is required, the Banbury Mixer performs better when handling high volume production.

Homogeneity: For products where mixing homogeneity is critical, the Banbury Mixer achieves high homogeneity in a short period of time. The Kneader Mixer is suitable for small batches with fine control.

Budget and energy consumption



The Banbury Mixer is typically used in industrial environments where budgets are high and efficiency is required.

The Kneader Mixer may be more cost-effective in small batches, for specific needs, and with reduced energy consumption.

Comparison of Technology and Economics

Technical

Banbury Mixer: It provides high-speed, high-intensity mixing for high-volume, high-viscosity, high-intensity material handling, achieving uniform mixing results in a short period of time. It is suitable for production environments with high requirements for mixing uniformity and productivity.

Kneader Mixer: focuses more on fine control, especially mixing under low shear. Ideally suited for high viscosity materials that are sensitive to shear, allowing precise control of the mixing process. It also ensures high performance and stability of the product and is particularly suitable for small batch production.

Economy

Banbury Mixer: The initial investment is high, but in long-term high-volume projects it can be cost-effective due to its efficient production capacity and continuous operational advantages.

Kneader Mixer: lower initial investment, suitable for scenarios where flexibility is required, especially in small batch production and for applications that do not require frequent use of the equipment, providing a more economical solution.

Conclusion

The above is a detailed comparison between the Banbury Mixer and the Kneader Mixer from Crown Machinery. Whether you choose the Banbury Mixer or the Kneader Mixer will depend on your specific application needs. In addition, various factors such as overall processing efficiency need to be considered.

At Crown Machinery, we offer a wide range of rubber machinery, with the Banbury Mixer and the Kneader Mixer being two of our main models. We also offer rubber Calender and vulcanizers as well as many other equipment options for different applications. If you have a question, feel free to contact our team for a professional solution.
