4 Roll Calender Machine

Crowns Machinery’s 4 Roll Calender Machine sets a new standard in precision and efficiency. Engineered with cutting-edge technology, it delivers unparalleled performance for your production needs.

4 Roll Calender Machine For Sale

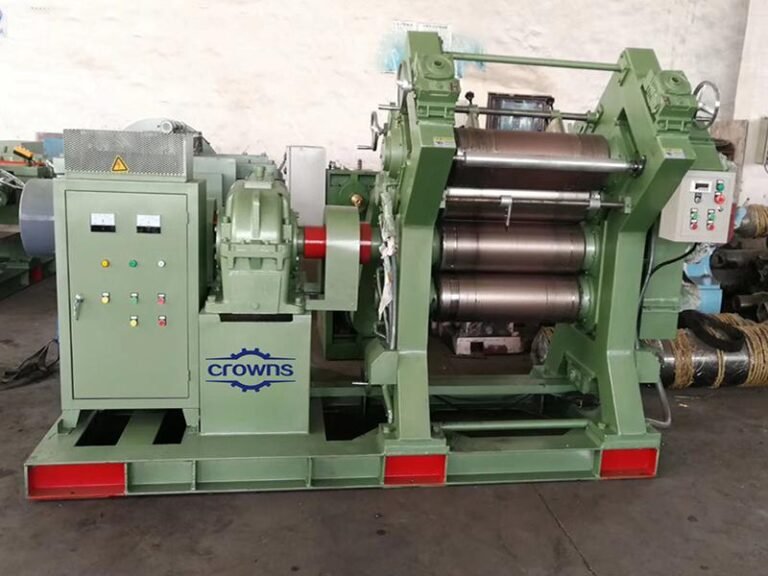

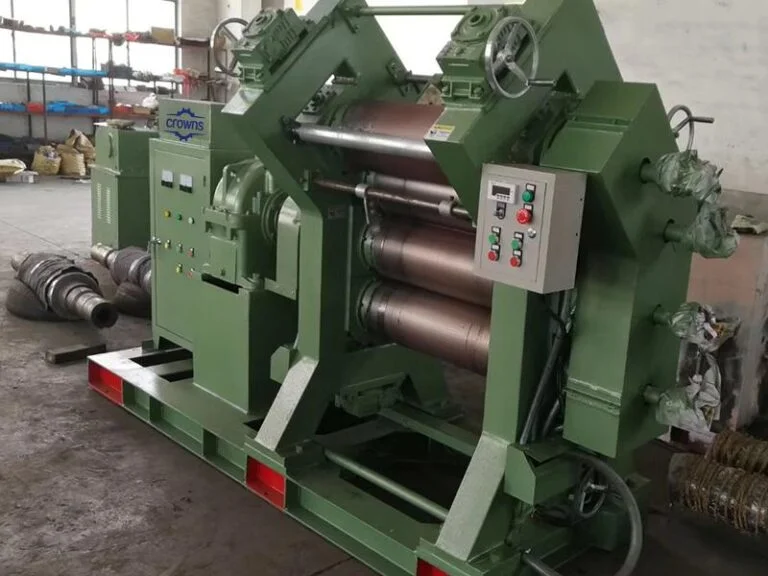

4 Roll Calender Machine is one of the specifications of rubber calender machine, which is used for processing rubber, plastic, silicone and so on. Different from 3 Roll Calender Machine, 4 Roll Calender has two pairs of rollers, one on top and one on bottom, which work together to process raw materials.

When working, the raw material is firstly fed into the machine by the upper feeding roller, and the rollers of the upper and lower roller groups work together to extrude the material. Before entering the lower roller group, the materials are crushed many times and gradually become diluted materials sent out by the discharging roller.

Advanced Calender Machine for Industrial Applications-Crowns Machinery

Parameters

Parameter/model XY-4-230 XY-4-360 XY-4-400 XY-4-450 XY-4-550 XY-4-610 XY-4-810
Roll diameter (mm) 230 360 400 450 550 610 810
Roll working length (mm) 630 1120 1200 1400 1500 1730 2500
Ratio of rubber speed 1:1:1:1 0.7:1:1:0.7 1:1.4:1.4:1 1:1.5:1.5:1 1:1.5:1.5:1 1:1.4:1.4:1 1:1.4:1.4:1
Roll speed (m/min) 2.1-21 2-20.1 3-26 2.5-25 3-30 8-50 4-40
Nip adjust range (mm) 0-10 0-10 0-10 0-10 0-15 0-10 0-10
Motor power (KW) 15 55 75 110 160 185 132x4
Size (mm) Length 2800 3300 6400 6620 7550 7880 11400
Width 930 1040 1620 1970 2400 2560 3900
Height 1890 2350 2490 2740 3400 3920 5140
Weight (KG) 5000 16000 20000 23000 45000 50000 130000

Structural characteristics

Upper roller group: including upper feeding roller and upper calendering roller. Among them, the function of upper feeding roller is to introduce raw materials into the working area, while the upper calendering roller is located above the upper feeding roller for applying processing pressure. Both of them cooperate with each other.

Lower Roller Group: Includes the lower feed roller and the lower calender roller. The lower feed roller is mainly responsible for receiving and conveying raw materials. And the lower calender roller is located below the lower feed roller for applying processing pressure.

Roller Diameter and Length: The diameter and length of each roller can be customized according to the specific application. The rollers in the lower roller set are larger than the rollers in the upper roller set to help provide processing pressure.

Roller material: The rollers are made of wear-resistant alloy steel and cast iron to withstand high pressure and friction.

Roller surface treatment: the surface of calendering rollers has a specific texture, and the texture can be customized according to the needs.

Roller spacing adjustment device: This device allows the operator to adjust the spacing between the upper and lower roller sets to control the thickness of the processed material.

Drive system: The machine is equipped with a powerful electric motor that provides sufficient torque and speed to ensure smooth operation.

Safety devices: To ensure the safety of the operator, the machine is equipped with safety devices such as emergency stop button, safety fence and guard.

Feeding system: The machine is equipped with automatic or manual feeding system, which can easily introduce raw materials into the working area.

Durable and Efficient Four Roll Calender Equipment

4 Roll Calender Advantages

Uniform calendering: The four-roller calender consists of two pairs of rollers, which can better process the raw materials evenly and improve the production quality.

Precise control: the machine has adjustable roller distance and pressure control system, by adjusting the processing parameters, it can meet various working needs.

High efficiency: the four-roller calender can handle large quantities of materials, processing smoothly and reducing production costs.

Multi-functional: the machine is suitable for a wide range of materials, such as rubber, plastic, silicone, etc. It has a wide range of industrial uses.

Energy Saving: 4 Roll Calender Machine adopts high efficiency motor and intelligent control system, which can effectively reduce energy consumption.

Reducing scrap: four-roller calender can greatly reduce the production of scrap and defective products due to uniform calendering and high control precision.

Easy to operate: the operation of the four-roll calender is very simple and does not require complex training before use.

High reliability: the machine is made of sturdy manufacturing materials with good abrasion and corrosion resistance and long service life.
