Conveyor Belt Hydraulic Press

Discover Crowns Machinery’s cutting-edge Conveyor Belt Hydraulic Press, engineered for efficient and precise industrial production. Elevate your manufacturing process with our advanced technology.

Conveyor Belt Hydraulic Press For Sale

Conveyor Belt Hydraulic Press, as the name suggests, is mainly used in the manufacture and repair of various types of conveyor belts, such as conveyor belt systems for handling and transport, to bond and vulcanize the various components of a conveyor belt to ensure that they have the strength and durability they need.

Hydraulic vulcanizing machines work by combining a conveyor belt system with a hydraulic press function, whereby pressure and heat are applied to the conveyor belt material, joining the different layers of the belt together to form a strong and durable conveyor belt.

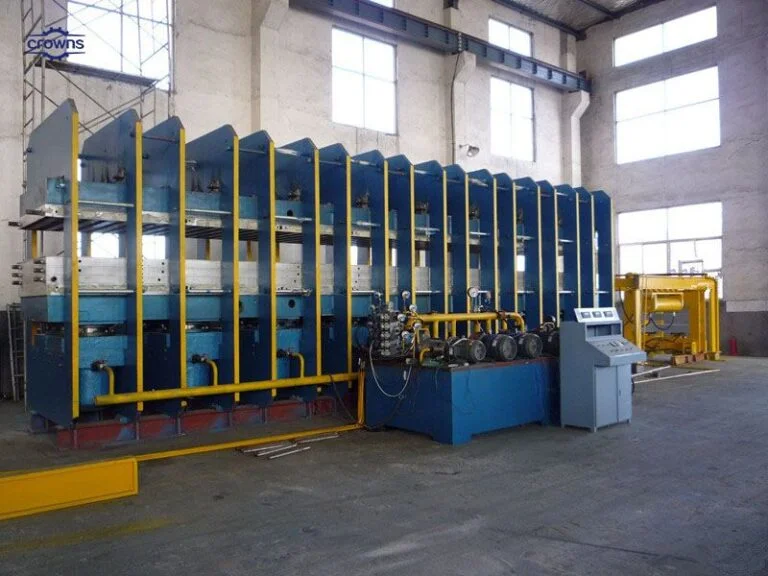

Durable Conveyor Belt Press for Industrial Applications

Parameters

Parameter unit XLB- 1800X 12000*2 XLB- 1800X 10000*2 XLB- 1800X 10000*2 XLB- 1600X 1000*1 XLB- 1600X 8500*1 XLB- 1600X 8500*1 XLB- 1400X 8000-2 XLB- 1400X 5700*2
Hot-plate size mm 1800*12000 1800*1000 1600*10000 1600*10000 1600*8500 1400*10000 1400*8000 1400*5700
Total pressure mn 74 72 56 64 47.6 49 34 25
Hot-plate unit pressure mpa 3.4 4 3.5 4 3.5 3.5 3.1 3.13
Plunger diameter mm 500 500 450 500 500 450 400 360
Plunger No 18 18 18 18 14 18 16 10
Max plunger stroke mm 400 300 400 300 300 300 400 400
Gripping strenth mn 1.2 1.5 1.2 1.2 0.6 0.9 1 0.72
Tension force mn 1.101.2 1.1 1 0.5 0.8 0.9 0.6 0.4
Steam pressure mpa 0.63 0.6-0.8 0.63 0.6-0.8 0.63 0.63 0.63 0.63
Cooling water pressure mpa 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
controlling method PLC PLC PLC PLC PLC PLC PLC PLC

Main structural features

Heating Plate: Provides uniform and controlled heat for the vulcanization process, ensuring uniform temperature distribution throughout the conveyor belt material.

Hydraulic system: This system applies pressure to the vulcanization process of the conveyor belt components to achieve precise pressure control.

Temperature Control System: This system sets and monitors the required vulcanizing temperature to ensure that the conveyor belt material reaches the correct vulcanizing temperature.

Control panel: The operator can control the vulcanizing temperature and pressure by entering the correct parameters, which can be monitored in real-time.

Safety devices: The equipment is equipped with an emergency stop button, safety interlocking devices safety guards, etc. to ensure the safety of the operators.

Conveying system: This system is used to feed the conveyor belt material into and out of the press, and the conveying speed can be controlled and adjusted to ensure uniform vulcanization.

Cooling system: This system is used to reduce the temperature of the conveyor belt after vulcanization, prevent overheating, and cool it evenly.

High production capacity: The conveyor belt hydraulic vulcanizing machine can be adapted to meet the requirements of various production capacities, whether for small-scale operation or large-scale production.

Energy-saving and durable: the equipment is durable, energy-saving, and environmentally friendly, and meets the strict requirements of industrial use.

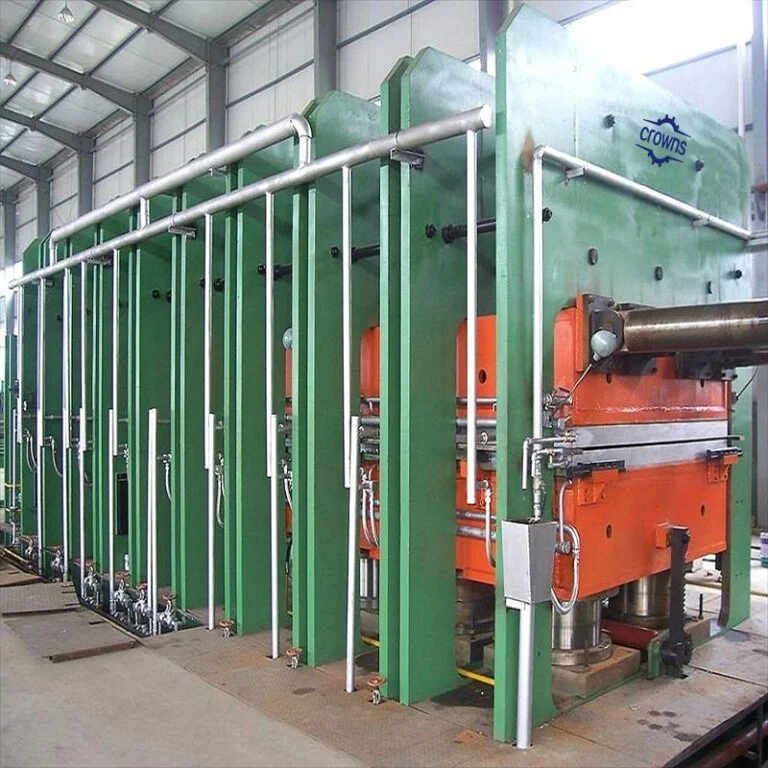

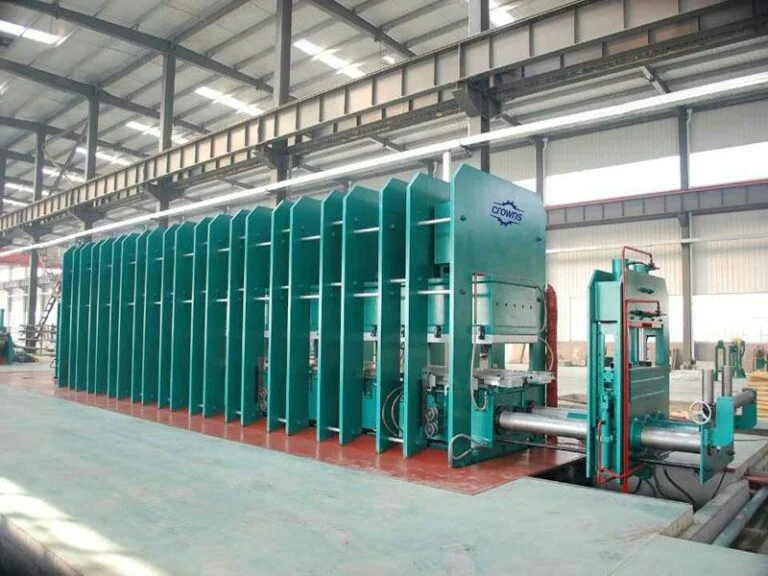

Conveyor Belt Hydraulic Press-Crowns machinery

Applicable

The equipment is widely used in manufacturing, mining, agriculture, food, logistics, and other industries, where conveyor belts play a vital role in material handling and transport.

Vulcanized belts: This equipment is used to splice or repair conveyor belts in industries such as mining, manufacturing, and agriculture, where heat and pressure are applied to vulcanize the end of the belt to ensure a strong and seamless connection.

Rubber and Plastic Industries: This equipment is used for molding various rubber and plastic products such as seals, gaskets, etc., by curing them into the required shape by applying heat and pressure.

Rubber sheet production industry: The equipment can be used for the production of rubber mats, rubber sheets, etc. so that the rubber is cured and molded into a specific size and thickness.

Aerospace, automotive, and other industries: The equipment is used to manufacture composite materials used in the aerospace and automotive industries.

Food processing industry: The equipment can be used to press cheese and other food production processes that require constant temperature and pressure control.

Textile industry: The equipment can be used for embossing, laminating, and bonding various fabric layers.

Leather products industry: the equipment is used for cutting leather patterns and laminating leather layers for various products such as shoes and backpacks.

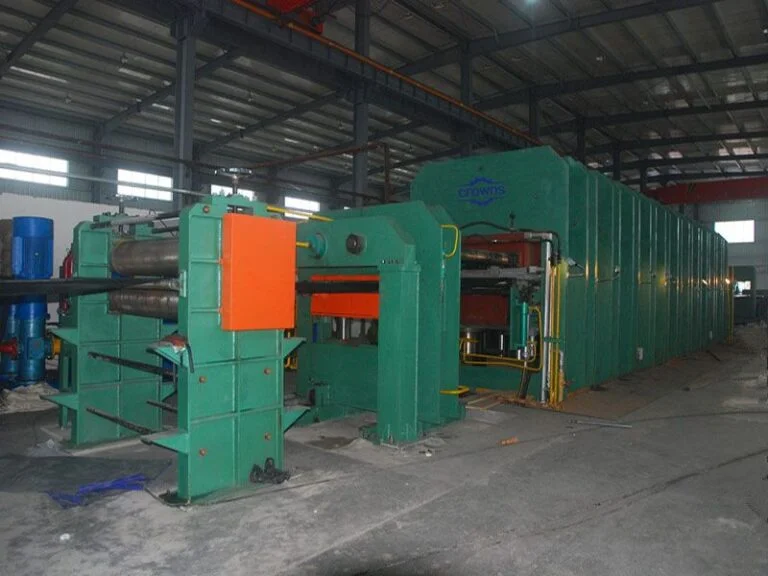

Precision Hydraulic Press for Manufacturing Process

Why choose us

We are the direct production factory of conveyor belt hydraulic vulcanizing machines, which is factory direct, with considerable production scale and experienced production workers.

We have obtained various qualifications and certificates, such as ISO quality management system certification, CE marking, safety certification, etc. We have passed all levels of certification regardless of production conditions or production quality, which is strictly in line with the requirements of the industry and response to the call of the industry.

Our company has a perfect product quality control system, our conveyor belt hydraulic vulcanizing machine is from raw material procurement to production by strict quality control.

Our conveyor belt hydraulic vulcanizing machines are produced with high precision and the tolerance range of the products is strictly controlled, so the quality of the products can be strictly guaranteed.

We support product customization, just tell us your work requirements and our professional team can design a perfect production plan for you.

We can give you good prices and discounts according to the number of orders so that you can be satisfied with both price and quality.
